MahApps.Metro - HotKeyBox

HotKeyBox is a field that records whatever key combination the user presses into it, the way a set shortcut box in an options dialog does. It derives from Control and its only template part is a read-only TextBox.

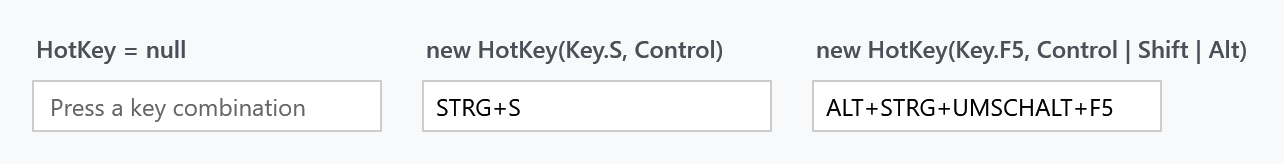

Empty, with Ctrl+S, and with a three-modifier combination

<mah:HotKeyBox Width="175"
               HotKey="{Binding SaveShortcut}"
               mah:TextBoxHelper.Watermark="Press a key combination" />

The captions above name what was set in code; the boxes show what the control rendered, which is not the same thing — see What it displays.

Properties

Property	Type	Default
`HotKey`	`HotKey`	`null`	the recorded combination; binds two-way by default
`AreModifierKeysRequired`	`bool`	`False`	reject a key pressed without a modifier
`Text`	`string`, read-only	`""`	what the field shows

HotKey has no type converter, so it cannot be written as an attribute in XAML — bind it, or set it in code:

this.hotKeyBox.HotKey = new HotKey(Key.S, ModifierKeys.Control);

With AreModifierKeysRequired left at False, a bare F5 is recorded as a hot key. Set it to True and a keystroke without at least one of Ctrl, Alt, Shift or Windows is ignored — the field keeps whatever it had.

What it records

The control handles PreviewKeyDown on its inner text box, and the rules are short enough to state completely:

Modifiers alone are never recorded. Both Shifts, Ctrls, Alts and Windows keys return early, as does Tab — so tabbing still moves focus out of the field.
Backspace with no modifier clears it, setting HotKey to null. Ctrl+Backspace, on the other hand, is recorded as a combination.
Everything else is recorded, as long as a modifier is held or AreModifierKeysRequired is False.
Alt combinations arrive as Key.System, and the control reads SystemKey in that case, so Alt+F4 and friends are captured rather than mangled.

While the field has focus it swallows every WM_HOTKEY message:

if (msg.message == (int)WM.HOTKEY)
{
    // swallow all hotkeys, so our control can catch the key strokes
    handled = true;
}

So a globally registered hot key does not fire while the user is recording one. The hook is added on GotFocus and removed on LostFocus.

The control itself is not a focus stop: a class handler on GotFocus forwards focus onward — to the next element, or the previous one if Shift is held — so only the inner text box takes focus.

The HotKeyChanged event

HotKeyChanged is a bubbling routed event with a RoutedPropertyChangedEventHandler<HotKey?>, so the handler gets both values:

private void OnHotKeyChanged(object sender, RoutedPropertyChangedEventArgs<HotKey?> e)
{
    this.saveShortcut = e.NewValue;
}

When it fires depends on the version. On develop the event is raised only when the recorded combination differs from the one before, so pressing Ctrl+S twice raises it once. A released version raises it for every recorded keystroke, because it compares the old and the new instance by reference and the control builds a new one each time.

What it displays

Text is read-only and is simply HotKey.ToString(), or empty when HotKey is null or its Key is Key.None.

The names come from the keyboard layout, not from the enum and not from the UI culture. HotKey.ToString() asks Win32 GetKeyNameText for each part, so new HotKey(Key.S, ModifierKeys.Control) shows Ctrl+S on an English layout and Strg+S on a German one — which is what the figure above is showing.

Do not parse Text, and do not use it as a persisted value. Store HotKey.Key and HotKey.ModifierKeys instead.

Modifiers are always written in a fixed order — Alt, Ctrl, Shift, Windows — whatever order you pass them in. Only the Windows key is spelled literally, as Windows+; the other three are localized.

The style sets ControlsHelper.ContentCharacterCasing to Upper, so the text is upper-cased before it is shown. Normal and Lower are honoured too, through three template triggers.

The HotKey class

public class HotKey : IEquatable<HotKey>
{
    public HotKey(Key key, ModifierKeys modifierKeys = ModifierKeys.None);

    public Key Key { get; }
    public ModifierKeys ModifierKeys { get; }
}

It is immutable, and both properties are get-only — to change a shortcut you assign a new instance, which is exactly what the control does on every keystroke.

== compares the key and the modifier keys, but only on develop. HotKey overrides Equals and GetHashCode and, on develop, also overloads operator == and operator !=, so two instances that carry the same key and the same modifiers are equal:

var a = new HotKey(Key.S, ModifierKeys.Control);
var b = new HotKey(Key.S, ModifierKeys.Control);

a == b        // true on develop, false in a released version
a.Equals(b)   // true

Both operators take null on either side, and Equals(null) returns false.

A released version has no operators, so there == is reference equality. The control hands you a fresh instance every time the user presses something, which makes an == check against a stored value always false, so compare with Equals until the next release.

In a released version, Equals(HotKey other) also throws a NullReferenceException when passed null, because it dereferences other without a check. Equals(object) is safe, as its is HotKey test rejects null. A null guard was added on develop and ships with the next release.

Because GetHashCode and Equals are implemented, HotKey works correctly as a dictionary key — which is the usual way to keep a table of shortcuts.

Styling

The template is a single TextBox, and the usual TextBoxHelper properties are passed through to it: Watermark, UseFloatingWatermark, WatermarkAlignment and WatermarkTrimming. ControlsHelper.FocusBorderBrush and MouseOverBorderBrush are set by the style, as is Validation.ErrorTemplate, so a failed binding gets the usual validation treatment.

TextBoxHelper for the watermark, ControlsHelper for the casing and border brushes.
