Applies to CheckBox. It has 81 attached properties, but they are three settings and one naming scheme rather than 81 things to learn.
Size and shape
| Property | Type | Default | |
|---|---|---|---|
CheckSize |
double |
18 |
edge length of the box |
CheckCornerRadius |
CornerRadius |
0 |
rounds it; half the size makes a circle |
CheckStrokeThickness |
double |
1 |
thickness of its outline |

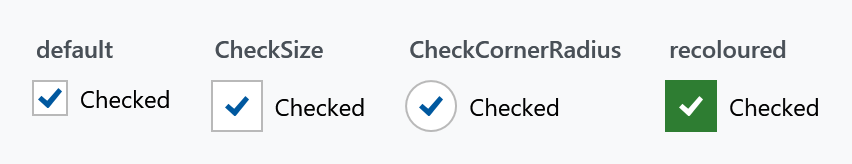

<CheckBox mah:CheckBoxHelper.CheckSize="26"
mah:CheckBoxHelper.CheckCornerRadius="13"
Content="Checked" />
The brushes
The remaining properties are all brushes, named {Part}{CheckState}{Interaction}:
| Part | |
|---|---|
Foreground |
the label |
Background |
behind the whole control |
BorderBrush |
around the whole control |
CheckBackgroundFill |
inside the box |
CheckBackgroundStroke |
outline of the box |
CheckGlyphForeground |
the tick itself |
Check state is Unchecked, Checked or Indeterminate. Interaction is nothing at all for the resting state, or MouseOver, Pressed or Disabled.
Every combination exists, which is where 6 × 3 × 4 = 72 of the properties come from:
<CheckBox mah:CheckBoxHelper.CheckBackgroundFillChecked="#2E7D32"
mah:CheckBoxHelper.CheckBackgroundStrokeChecked="#2E7D32"
mah:CheckBoxHelper.CheckGlyphForegroundChecked="White"
Content="Checked" />
RadioButtonHelper uses PointerOver where this one uses MouseOver. The two helpers were written at different times and the naming was never reconciled.

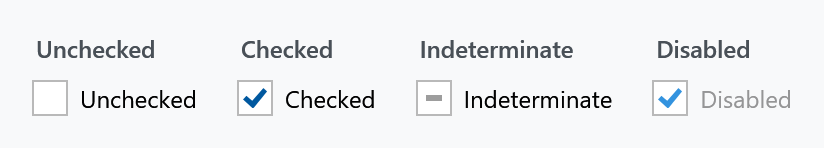

Recolouring one state only changes that state, so a check box that should look different throughout needs the resting, hover, pressed and disabled variants set. The states as they come out of the box:
The glyph
Each check state has its own glyph, and each glyph has its own template:
| Property | Type | |
|---|---|---|
CheckGlyphUnchecked, CheckGlyphChecked, CheckGlyphIndeterminate |
object |
what is drawn in the box |
CheckGlyphUncheckedTemplate, CheckGlyphCheckedTemplate, CheckGlyphIndeterminateTemplate |
DataTemplate |
how it is drawn |
The style fills these in with Path geometry and a template that renders it, so replacing the content alone leaves the template trying to read your value as geometry. Set the template as well, or clear it with {x:Null} to fall back to plain content.
Related
ToggleButtonHelper.ContentDirection puts the box on the right of the label. See ToggleButtonHelper.
