NumericUpDown is a text field for a number, with a button to step it up and one to step it down.

<mah:NumericUpDown Minimum="0"
                   Maximum="10000"
                   Interval="100"
                   StringFormat="C2"
                   Value="{Binding Amount}" />

Four controls, one template

On develop there are four of these, one per type. They share a base class, a template and every property on this page; all that differs is what Value, Minimum, Maximum and Interval are. A released version has only NumericUpDown.

NumericUpDown stays a double and keeps every property it had, so nothing written against it needs touching.

The reason to reach for DecimalUpDown is that a double cannot hold 0.1. It holds something very close, and the error shows once such values are added up: stepping a NumericUpDown from 0.1 twice by 0.1 leaves Value at 0.30000000000000004, where a DecimalUpDown leaves it at 0.3. The field reads 0.3 either way, so the difference only turns up in whatever the value is bound to. Binding a decimal property to a NumericUpDown has the same problem, since the value is carried through a double on the way in and out.

IntegerUpDown and LongUpDown start with NumericInputMode at Numbers, so the decimal separator is refused as a keystroke. A LongUpDown also holds a count exactly all the way to long.MaxValue, which a double stops doing at about nine quadrillion.

The value and its range

T is double for NumericUpDown and the matching type for each of the other three. In a released version everything here is a double.

Value is nullable, so an empty field is a real state rather than zero. Bind to a nullable if the user is allowed to clear it.

SnapToMultipleOfInterval (default False) rounds every new value to the nearest multiple of Interval:

value = Math.Round(newValue / this.Interval) * this.Interval;

It is applied to values that arrive by any route, not just to the buttons, and turning the property on rounds the current value immediately.

How the user changes it

ChangeValueOnTextChanged is worth knowing about for bound scenarios: left at its default, every keystroke pushes a value, so typing 15 in an empty field momentarily sets 1.

Holding a button repeats the step. Delay (default 500 ms) is the pause before the repeat begins, and Speedup (default True) makes the repeat accelerate the longer the button is held. Set Speedup="False" for a constant rate.

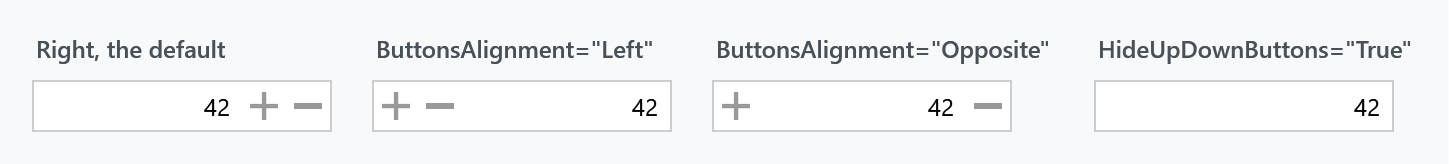

The buttons

Opposite puts one button at each end of the field, as in the third panel at the top of this page.

Hiding the buttons does not make the control read-only — the arrow keys, the wheel and typing all still work. To make it look inert when it is, drive the property from IsReadOnly:

<Style BasedOn="{StaticResource {x:Type mah:NumericUpDown}}" TargetType="{x:Type mah:NumericUpDown}">
    <Style.Triggers>
        <Trigger Property="IsReadOnly" Value="True">
            <Setter Property="HideUpDownButtons" Value="True" />
        </Trigger>
    </Style.Triggers>
</Style>

The Windows looks

MahApps.Styles.NumericUpDown.Win10 and MahApps.Styles.NumericUpDown.WinUI draw the control the way Windows does: the text box of that set with the two buttons standing inside its frame, the number against the left edge and a chevron on each button instead of a plus and a minus. Either style covers all four up-downs, and a control that is switched off says so with the colours of its set rather than with a veil over it.

<mah:NumericUpDown Style="{DynamicResource MahApps.Styles.NumericUpDown.WinUI}" Value="42" />

Win 10 (UWP) and WinUI have the whole set.

Formatting

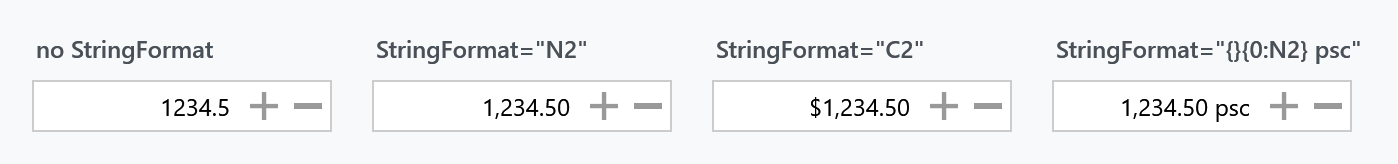

StringFormat takes a standard or custom .NET numeric format string:

Culture (default null, meaning the thread's culture) decides the separators and the currency symbol. The examples above are en-US.

ParsingNumberStyle (default NumberStyles.Any) is what typed text is parsed with, if you need to be stricter than that.

A hexadecimal StringFormat

A format such as X, X8 or {}0x{0:X} writes letters, and only a hexadecimal parse reads them back. The control therefore follows the format: it sets ParsingNumberStyle to NumberStyles.HexNumber and adds NumericInput.Decimal to the NumericInputMode for as long as the format stays hexadecimal.

This changed on develop with #4499. In a released version there was no way out again: once a hexadecimal format had been set the parsing stayed hexadecimal even after the format changed back, and a typed 10 came out as 16. On develop the control gives back what the format took over. A parsing style or input mode you changed in the meantime is yours and is left alone.

Without a StringFormat

This changed on develop with #3673. A value with no format of its own used to go straight to double.ToString(), which reaches for an exponent on a small number and, since .NET Core 3.0, writes out every digit a calculation left behind:

Plain decimal notation is used while the magnitude stays between 1e-15 and 1e15, and whole numbers that fit in a long are written out in full. Outside that the framework still decides, because a decimal format would either drop a significant digit or bury the number in zeroes. A StringFormat of your own decides everything, exactly as before.

The sixteenth and seventeenth significant digit of a double are no longer shown, though they are still held in the value. If they matter to you, they are the reason DecimalUpDown exists.

Decimals

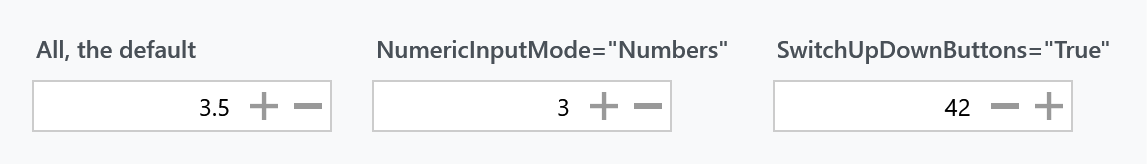

NumericInputMode is a [Flags] enum with Numbers, Decimal and All, and defaults to All. Set it to Numbers and the decimal separator is refused, so 3.5 becomes 3 — the second panel above.

The numeric keypad's decimal key

DecimalPointCorrection solves a small, real annoyance: the . key on the numeric keypad produces a period regardless of the keyboard layout, which is wrong in every culture whose decimal separator is a comma.

The control intercepts Key.Decimal only — the period key on the main keyboard is left alone — marks the event handled, and inserts the separator its Culture calls for. The three non-default modes exist because those three separators can differ within one culture.

Related

DataGridNumericUpDownColumn puts one of these in a DataGrid cell and forwards most of these properties to it, DecimalPointCorrection included. It holds a double.

The default style targets the shared base class, NumericUpDownBase, so one style covers all four. WPF still matches an implicit style by the exact type, so a style of your own needs a one-line entry per control:

<Style x:Key="MyUpDown"
       BasedOn="{StaticResource MahApps.Styles.NumericUpDown}"
       TargetType="{x:Type mah:NumericUpDownBase}">
    <Setter Property="ButtonsAlignment" Value="Opposite" />
</Style>

<Style BasedOn="{StaticResource MyUpDown}" TargetType="{x:Type mah:NumericUpDown}" />
<Style BasedOn="{StaticResource MyUpDown}" TargetType="{x:Type mah:DecimalUpDown}" />
