MetroContentControl is a ContentControl that plays a short slide-and-fade whenever it appears. It is what gives a MahApps page its characteristic entrance.
<mah:MetroContentControl>
<!-- page content -->
</mah:MetroContentControl>
It does not animate when the content changes. Nothing in the control watches Content — there is no OnContentChanged override and no callback on the property. The transition runs when the control is loaded and when it becomes visible, and that is all.
Assigning a new Content swaps it instantly, with no animation. For a control that animates one content into the next, use TransitioningContentControl; to re-run this control's transition on a change, see Replaying it below.
The animation
Two things happen at once, defined as visual states in the template:
| opacity | 0 → 1 over 0.4s |
TranslateTransform.X |
30 → 0 over 0.7s, with easing |

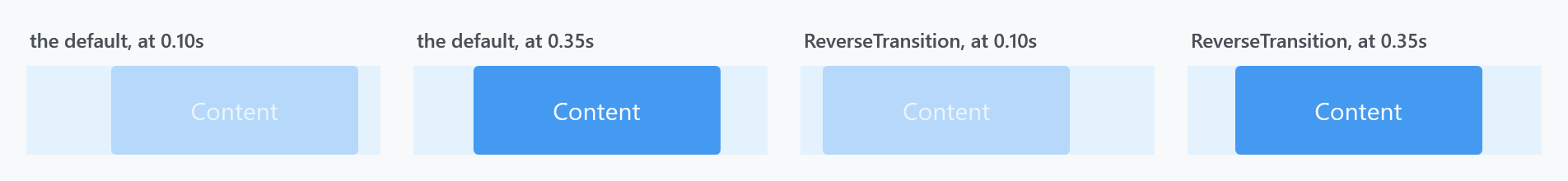

So the content drifts in from the right while fading up. ReverseTransition flips the slide to −30, bringing it in from the left instead — the two right-hand panels above. The tinted strip in each panel is a fixed-width backdrop, there so the displacement can be seen against something that does not move with it.
Leaving the control (the AfterUnLoaded state) plays the same thing backwards in 0.1s.
Properties
| Property | Type | Default | |
|---|---|---|---|
TransitionsEnabled |
bool |
True |
play the transition at all |
ReverseTransition |
bool |
False |
come in from the left instead of the right |
OnlyLoadTransition |
bool |
False |
play it once, at load, and never again |
IsTransitioning |
bool, read-only |
False |
whether an animation is running |
OnlyLoadTransition is the one to reach for when a control is shown and hidden repeatedly and you only want the entrance once. It is latched at load time, and once latched the control ignores visibility changes.
TransitionsEnabled has no property-changed callback. With it set to False, the Loaded handler is what resets the template's RootGrid to full opacity and zero offset — so switching the property at runtime does nothing until the control is loaded again. Set it in XAML, not later from code.
Replaying it
Reload() runs the transition again:
this.contentControl.Reload();
It returns without doing anything when TransitionsEnabled is False or when OnlyLoadTransition is True — the latter is easy to miss, since the two properties otherwise look unrelated.
ReloadBehavior wires Reload() to two common triggers, so you rarely have to call it yourself:
<mah:MetroContentControl mah:ReloadBehavior.OnDataContextChanged="True">
<!-- content -->
</mah:MetroContentControl>
| Attached property | Replays the transition when |
|---|---|
ReloadBehavior.OnDataContextChanged |
the control's DataContext changes |
ReloadBehavior.OnSelectedTabChanged |
a TabControl above it raises SelectionChanged |
OnDataContextChanged is the practical answer to "animate when the content changes": bind the view model to the DataContext and the transition replays with each new one. OnSelectedTabChanged also works on TransitioningContentControl.
Events
Both are bubbling routed events.
TransitionStarted |
the storyboard's clock is running |
TransitionCompleted |
the storyboard finished |
TransitionStarted fires many times per transition, not once. It is raised from the storyboard's CurrentTimeInvalidated handler, which runs on every frame, guarded only by a check that the clock is active:
if (clock.CurrentState == ClockState.Active)
{
this.SetValue(IsTransitioningPropertyKey, BooleanBoxes.TrueBox);
this.RaiseEvent(new RoutedEventArgs(TransitionStartedEvent));
}
One transition of a default MetroContentControl raises 37 TransitionStarted events and a single TransitionCompleted. It is the same on develop.
So do not treat it as "the transition began" — put anything that must happen once behind a flag of your own, or use TransitionCompleted, which really is raised once. IsTransitioning is set repeatedly to the same value, which is harmless.
Where else it shows up
CustomValidationPopup checks for an ancestor MetroContentControl and suppresses itself while one is transitioning, so a validation message never appears pinned to a control that is still sliding into place.
Related
TransitioningContentControl animates between two contents and offers a choice of transitions; this control animates its own appearance. Flyout has its own slide and does not need either.
